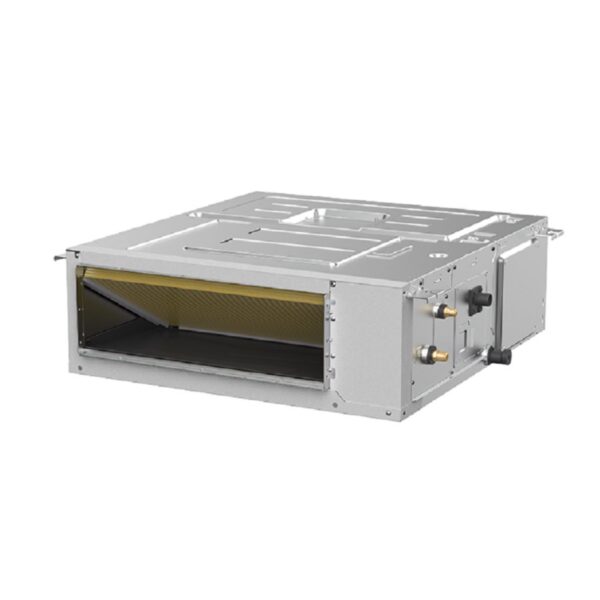

45MBDAQ36XH3 Ductless 36000 Btuh Slim Ducted Heat Pump Fan Coil Unit R-454B (208/230-1)

Description 45MBDAQ36XH3 Ductless 36000 Btuh Slim Ducted Heat Pump Fan Coil Unit R-454B (208/230-1) – E:Mail: [email protected] to confirm availability or for volume discounts 45MBDAQ36XH3 4 = Indoor Unit / Product 5 = Puron Advance (R-454B) / Refrigerant MBD = Model Type A = Major Series Q = Heat Pump / Unit Type 36 = 36,000 / Nominal Capacity X = 0 / # of Indoor Units H = High Static / Variation 3 = 208/230-1-60 / Electrical FEATURES & BENEFITS Sizes: 06 / 09 / 12 / 18 (Low Static); 09 / 12 / 18 / 24 / 36 / 48 / 58 (High Static) Available in 208/230V Modes: Cool, Heat, Dry, Fan, Auto Vertical (sizes 06-48) or horizontal (All Sizes) installation Up to 0.8 in WG Rear or bottom return Outside air intake External Condensate Lift Pump Shipped with the unit (Sizes 09-18) Built-in condensate lift pump (High static units) Follow Me (senses temperature at handheld remote) Heating Setback (46° F Heating Mode) Quiet indoor operation, as low as 22 decibels Anti-corrosive fin coating< Attributes Approvals ETL Listed Blower Motor HP 1/2 Blower Motor RPM 790 Blower Motor Speeds 3 Blower Motor Type ECM (Electronically Commutated Motor) Blower Motor Watts 427.3 Blower Wheel Diameter 8 1/10 Blower Wheel Width 9 1/5 Brand Carrier®, Bryant®, Payne® CFM 765-1,236 CFM Heating 765.18-1,236.06 COP 2.3 Color Gray Cooling Capacity 36,000 Cooling Rated Capacity (Btu/h) 36000 Country of Origin CHN Cycle/Hertz 60 Hz Drain Connection Size 5/8″ EER2 12.5 Energy Star Rated NO Evaporator Coil Fins per Inch (FPI) 22 HSPF 11 HSPF2 10 Heating Capacity 36,000 Liquid Line Fitting Type Flare Liquid Line Size (OD) 3/8″ Metering Device EEV – Electronic Expansion Valve Mounting Type Concealed Ducted Multi Zone YES OPT Code 1P45MBDAQ36XH3 Phase Single Product Family 45MBDA Prop 65 YES Refrigerant R-454B Remote Control Included YES SEER2 23-25 Sound Level (dBA) 31-45 Stages Cooling Variable Stages Heating Variable Suction Line Fitting Type Flare Suction Line Size (OD) 3/4″ Tier Standard Tonnage 3 UPC See Optical Voltage 208-230 VAC
