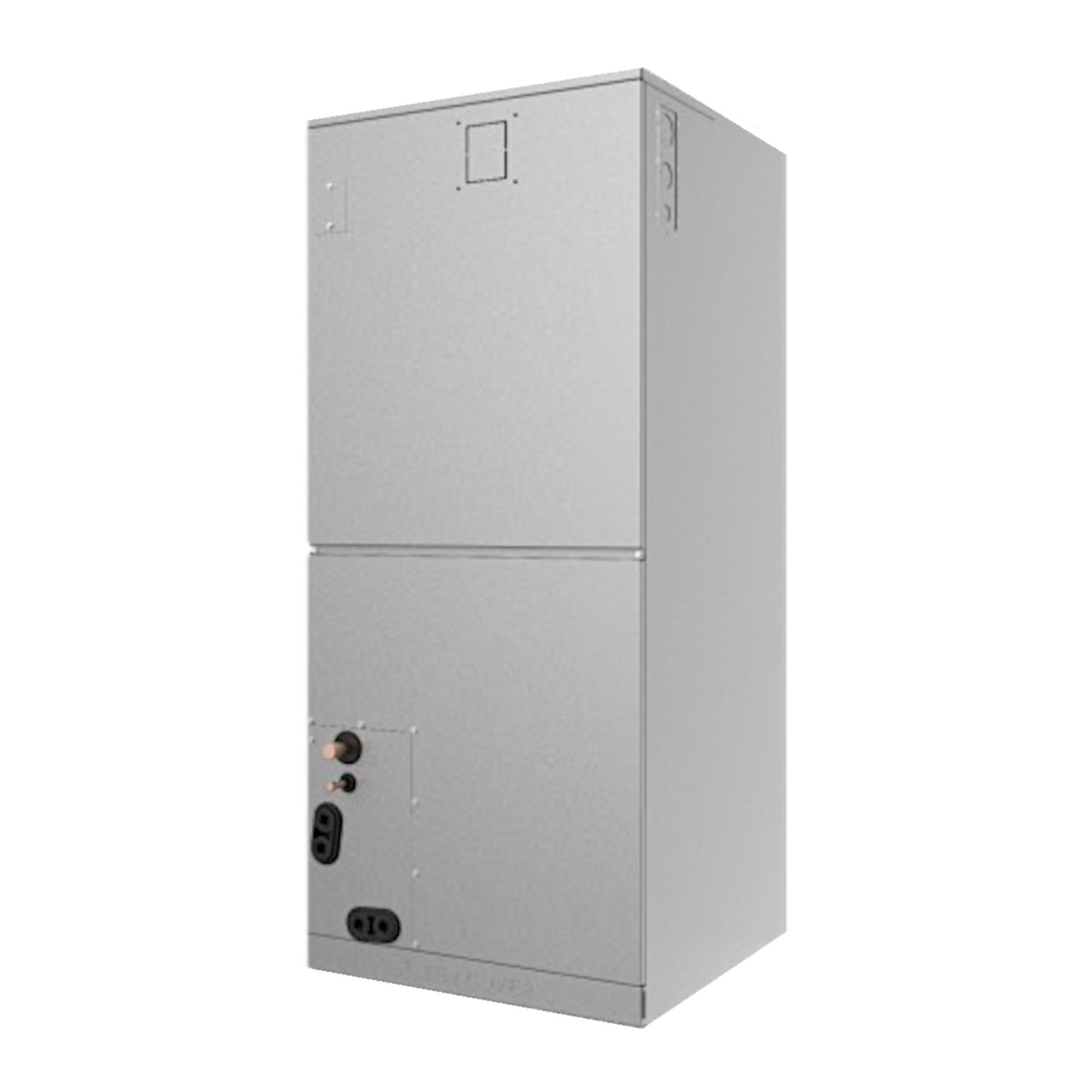

45MUAAQ18XX3 1.5 Ton Heat Pump Fan Coil Unit R-454B (208/230-1)

Description 45MUAAQ18XX3 1.5 Ton Heat Pump Fan Coil Unit R-454B (208/230-1) – E:Mail: [email protected] to confirm availability or for volume discounts 45MUAAQ18XX3 4 = Indoor Unit / Product 5 = Puron Advance R-454B / Refrigerant MU = Model Type A = A/H Air Handler / Indoor Type A = Major Series Q = Heat Pump / Unit Type 18 = 18,000 / Nominal Capacity X = # of Indoor Units X = Variation 3 = 208/230-1-60 / Electrical INDOOR STANDARD FEATURES Modes: Cool, Heat, Dry, Fan, Auto Factory installed leak detection system Conventional Lineset Dual Voltage (115V/230V) Constant Air Motor/Blower Quiet indoor operation Anti-corrosive fin coating Attributes Air Flow Direction Multi-Position Approvals ETL Listed; UL Listed Blower Motor HP 1/3 Blower Motor RPM 550 Blower Motor Speeds 3 (Three) Blower Motor Type ECM (Electronically Commutated Motor) Brand Bryant®, Carrier® CFM 488.54-618.03 Cabinet Width 21 Color Gray Cooling Capacity 18,000 Cooling Rated Capacity (Btu/h) 18000 Country of Origin CHN Cycle/Hertz 60 Hz Drain Connection Size 3/4″ Electric Heat Range [kW] 5-10 Energy Star Rated Yes Evaporator Coil Fins per Inch (FPI) 20 Filter Size 16″ x 20″ x 1 Heating Capacity 6,000-22,000 Includes Filter Rack Yes Liquid Line Fitting Type Flare Liquid Line Size (OD) 3/8″ Maximum Overcurrent Protection (MOCP) 15 Metering Device EEV – Electronic Expansion Valve OPT Code 1P45MUAAQ18XX3 Phase Single Product Family 45MUAA Prop 65 Yes Refrigerant R-454B Suction Line Fitting Type Flare Suction Line Size (OD) 3/4″ Tonnage 1.5 Voltage 115/208-230 VAC
