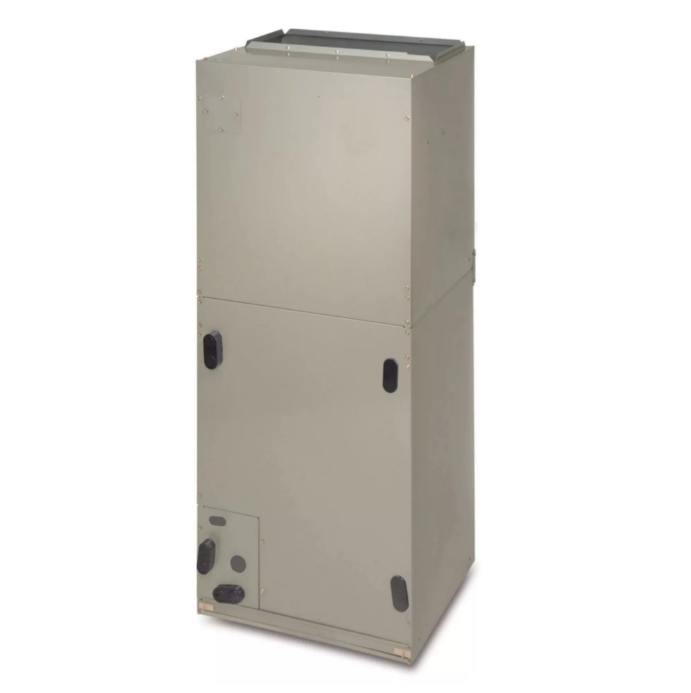

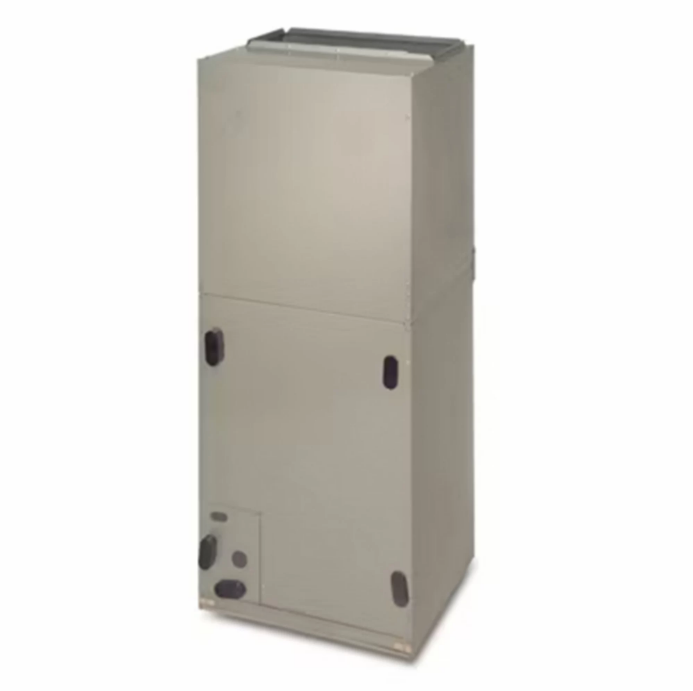

FE5BNBD60L00 5 Ton Residential Fan Coil Communicating Variable-Speed Multipoise R-454B (Aluminum Coil)

Description FE5BNBD60L00 5 Ton Residential Fan Coil Communicating Variable-Speed Multipoise R-454B (Aluminum Coil) – E:Mail: [email protected] to confirm availability or for volume discounts FE5BNBD60L00 F = Fan Coil / Product E = Variable Speed Constant Airflow (VCA) ECM Motor, multipoise / Type 5 = Puron Advance (R-454B) Refrigerant / Refrigerant B = Series N = 208/230v, 1 ph-60 Hz / Electrical B = Modular, Hard Shutoff TXV / Cabinet Configuration D = 24-11/16″ / Cabinet Width 60 = 60,000 / Capacity L00 = Aluminum / Coil Type FEATURES Smart Diagnostics Self configuring (ease of installation). Easier troubleshooting, providing faster service and repair. Energy Tracking capability with the Evolution Wall Control. (Energy Tracking has the ability to monitor and estimate the energy consumption of your Evolution system.) Compatibility with wall control depends on software version. Check the installation instructions for minimum requirements. Environmentally Responsible Refrigerant Technology Puron Advance refrigerant – the low-GWP, chlorine-free, non-ozone depleting refrigerant. Refrigerant leak detection dissipation system for added safety and peace of mind for the homeowner. Thermostatic Expansion Valve (TXV) designed to maximize performance with Puron Advance refrigerant. Bi-flow hard-shutoff with mechanical fittings. Energy Efficient Operation Electronically Commutated Motor (ECM) operates efficiently at all speeds. Maximizes efficiency of heating and cooling systems. Ultra-low power consumption during fan only operation. Comfort Control Warm, comfortable heating air temperatures. Unmatched humidity control Airflow and Sound Technology Logarithmic spiral blower housings for high blower efficiency and quiet operation. Diffuser air discharge section for high airflow efficiency and quiet, smooth operation. High duct static capability. Design meets stringent regulations for cabinet air leakage of less than 2% cabinet leakage rate at 1.0 inches W.C. and 1.4% cabinet leakage rate at 0.5 inches W.C. when tested in accordance with ASHRAE 193 standard. Condensate Control and Disposal Technology Minimal standing water – less microbial growth for improved IAQ and reduced condensate line clogging and related condensate leakage. Condensate fittings relocated away from turbulent airflow patterns at the blower entrance for improved condensate control performance. Overflow feature for slope coil units allows condensate to exit the unit without damage to product under clogged primary and secondary line conditions. Tested for condensate disposal at conditions much more severe than those required by ARI. Primary and secondary drain connections to comply with HUD. All pans constructed of an injection molded glass-filled polycarbonate engineered resin material, with brass drain connections. High density, super thick cabinetry insulation with vapor barrier. Pre-painted galvanized sheet metal cabinet. Heat Transfer Technology Grooved tubing. Lanced sine wave aluminum fins. Discreet refined counterflow refrigerant circuitry. Bi-flow hard-shutoff TXV metering device with mechanical fittings. Quality Assisting, Ease of Installation and Service Features Easy 4-wire hook up: convenient and reduces installation time. Multipoise unit. Provision made for suspending from roof or ceiling joints. Modular cabinet for size 60, and available for sizes 36 and 48. Sweat connections for leak free service. Straight stub-outs on liquid and vapor service lines, long enough to either swage for brazing or use for brazeless press fittings. Multiple electrical entry for application flexibility (high and low voltage). Low voltage terminal strip, to safely hold connections within the cabinet. Cabinet construction features innovations designed to prevent cabinet sweating. Controls and Electrical Features Easy plug connection provided for quick installation of accessory heater packages. 40VA 208/230v transformer. Replaceable 3-amp blade-type auto fuse protects against transformer secondary short. Filter Features Factory supplied filter. Standard sized filter rack fits most common size replacement filters. Warranty Default 5-year parts limited warranty: – 10-year parts limited warranty with timely registration*. Equipment must be registered within 90 days of original installation, except in jurisdictions where warranty benefits cannot be conditioned on registration. * Applies to original purchaser/homeowner and not available to subsequent owners, except in jurisdictions where laws dictate otherwise. See Warranty certificate for complete details and restrictions. Attributes Air Flow Direction Multi-Position Approvals UL Listed Blower Motor HP 3/4 Blower Motor RPM 1,050 Blower Motor Speeds Variable Blower Motor Type ECM (Electronically Commutated Motor) Blower Wheel Diameter 13 3/4 Blower Wheel Width 12 3/4 Brand Bryant®, Carrier® CFM 1,050-1,750 Cabinet Width 24.6875 Color Taupe Cooling Capacity 36,000-60,000 Cooling Rated Capacity (Btu/h) 60000 Country of Origin MEX Cycle/Hertz 60 Hz Drain Connection Size 3/4″ Electric Heat Range [kW] 5-30 Energy Star Rated No Evaporator Coil Fins per Inch (FPI) 14.5 Filter Size 20″ x 24 Heat Pump Compatible Yes Includes Filter Rack Yes Liquid Line Fitting Type Sweat or Braze Liquid Line Size (OD) 3/8″ Maximum Overcurrent Protection (MOCP) 15 Metering Device TXV/TEV – Thermostatic Expansion Valve OPT Code 1PFE5BNBD60L00 Phase Single Product Family FE5B Prop 65 Yes Refrigerant R-454B Stage (1) Single Suction Line Fitting Type Sweat or Braze Suction Line Size (OD) 7/8″ Tonnage 2.5-5 UPC See Optical Voltage 208-230 VAC
