ARK Just A Jetson

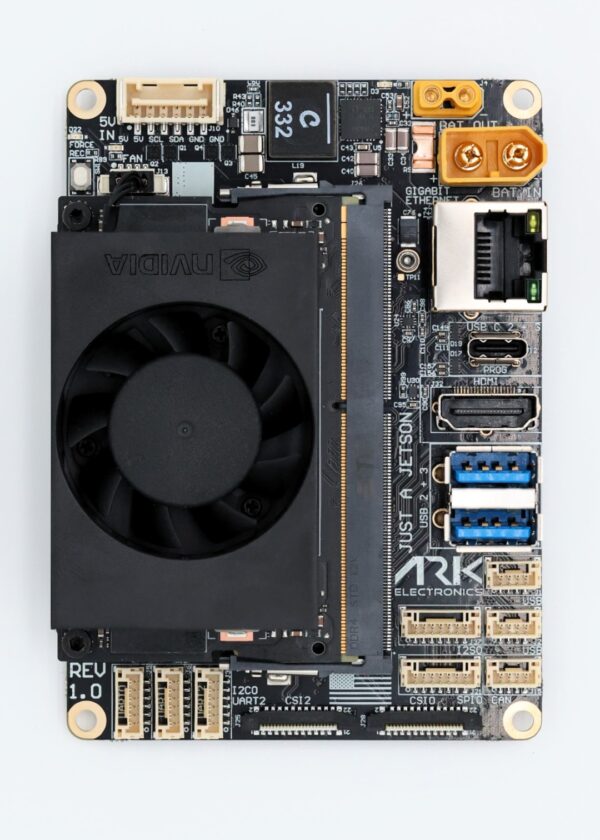

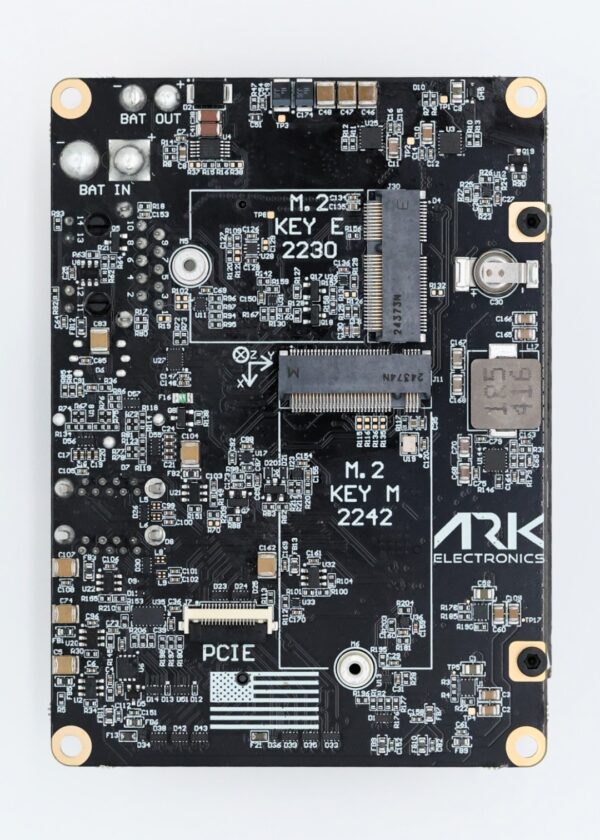

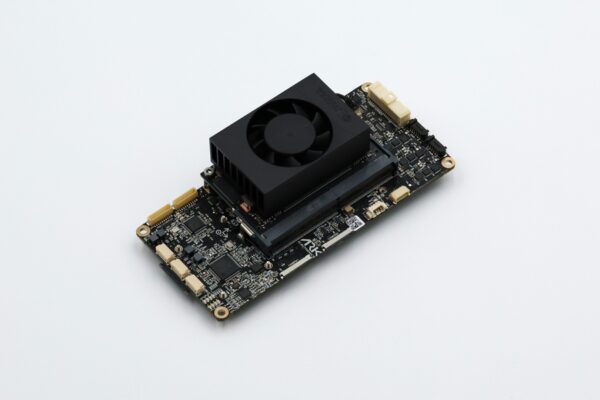

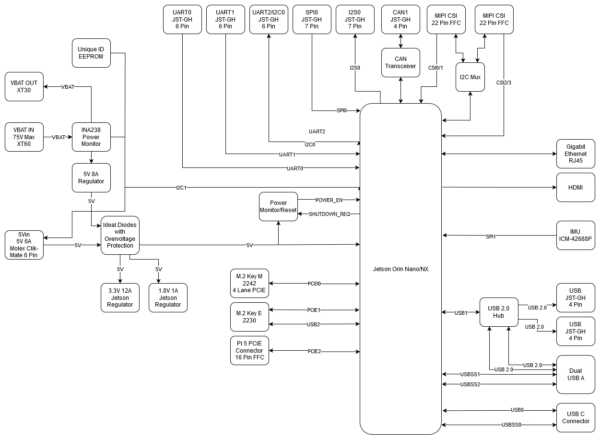

Description The ARK Just A Jetson is an NDAA compliant and made in the USA NVIDIA Jetson Orin NX/Nano Carrier Board. Supporting direct battery input up to 75V and a built-in IMU. Jetson Orin NX/Nano Form Factor Supports Super Power Mode Connectors XT60 Battery Input 75V Max 5.5V Min Built INA238 Power Monitor Built in 5.2V 8A Regulator XT30 Battery Output Measured Output with Power Monitor 5V Digital Power Module Input 5V 6A Max I2C Power Monitor Support 6 Pin Molex CLIK-Mate For Redundant or Extra Power Supports ARK PAB Power Modules Gigabit Ethernet RJ45 Dual MIPI CSI Camera Inputs 2x – 22 Pin 0.5mm Pitch Raspberry Pi Cam FFC Dual USB 3.2 USB 2.0 Host Ports 2x – USB A 1.5A Current Limit USB C Dual Mode (OTG) Port 1.5A Current Limit Dual USB 2.0 Host Ports 4 Pin JST-GH 1.0A Current Limit M.2 Key M 2242 PCIEx4 M.2 Key E 2230 PCIEx2 USB I2S PCIE 16 Pin FFC Connector Matches Raspberry Pi 5 PCIE Pinout PCIEx2 HDMI Full Size Connector HDMI v2.1 CAN Port 4 Pin JST-GH SPI/GPIO Port 7 Pin JST-GH I2S/GPIO Port 7 Pin JST-GH UART0/GPIO 6 Pin JST-GH UART1/GPIO 6 Pin JST-GH UART2/I2C0 6 Pin JST-GH Debug Console Defaults to UART2 Built in IMU ICM-42688P USA Built NDAA compliant Power Requirements 5V 4A Minimum Depends on Usage and Peripherals Dimensions Without Jetson 100mm x 72mm x 23mm Weight Without Jetson and M.2 Modules – 75g *Requires a NVIDIA Jetson Orin Nano or Jetson Orin NX. Jetson Nano and Jetson Xaviar NX are partially compatible. Documentation
