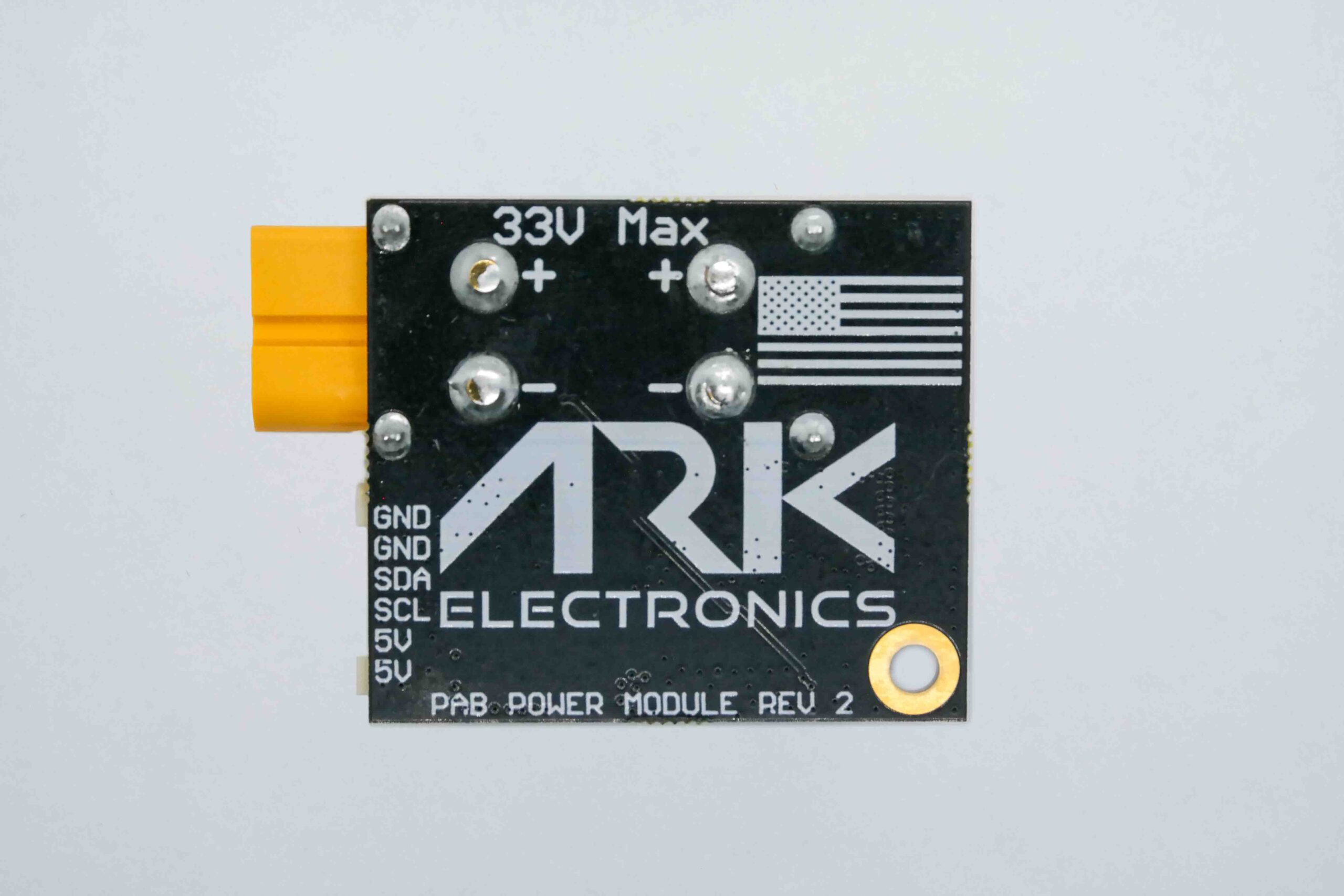

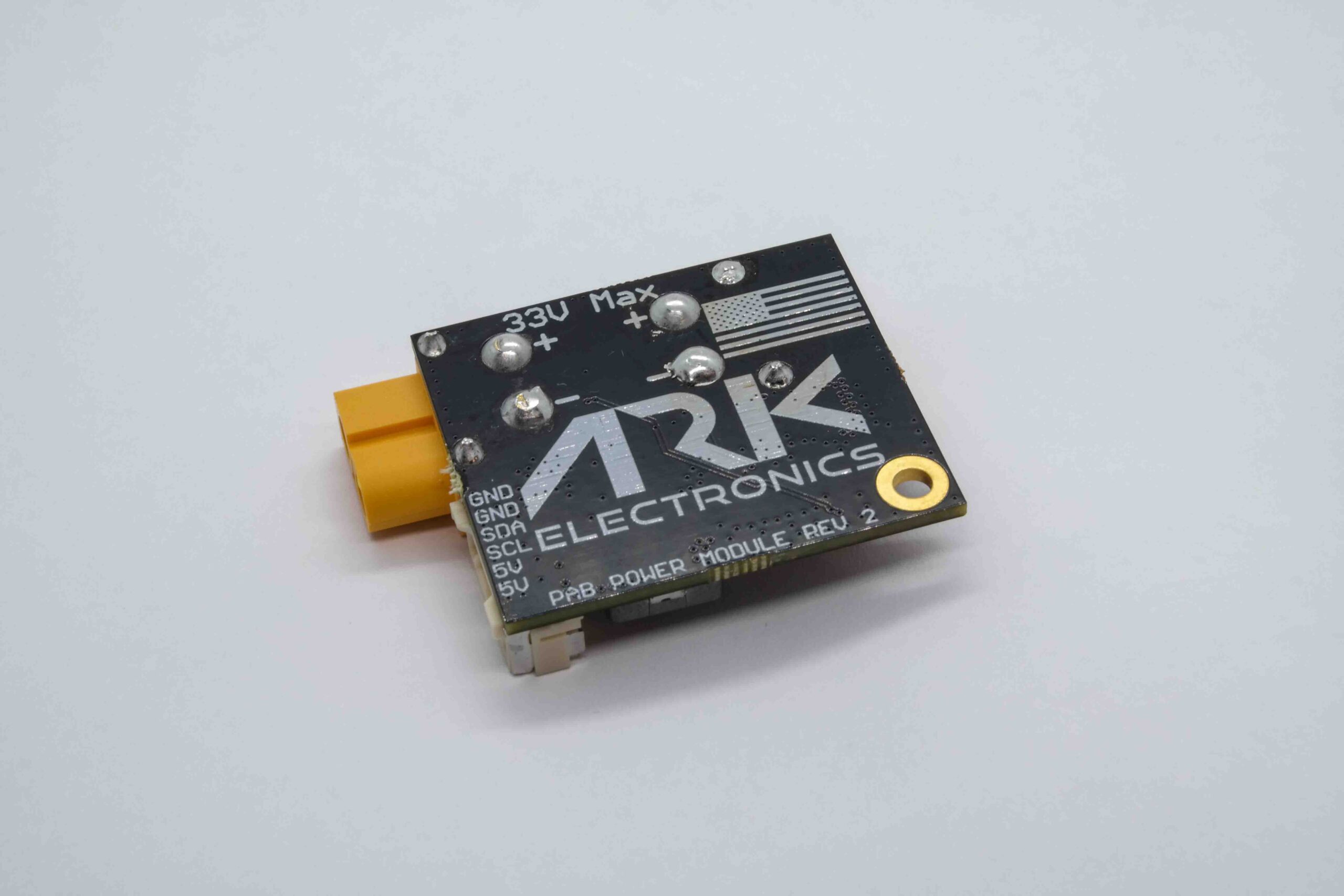

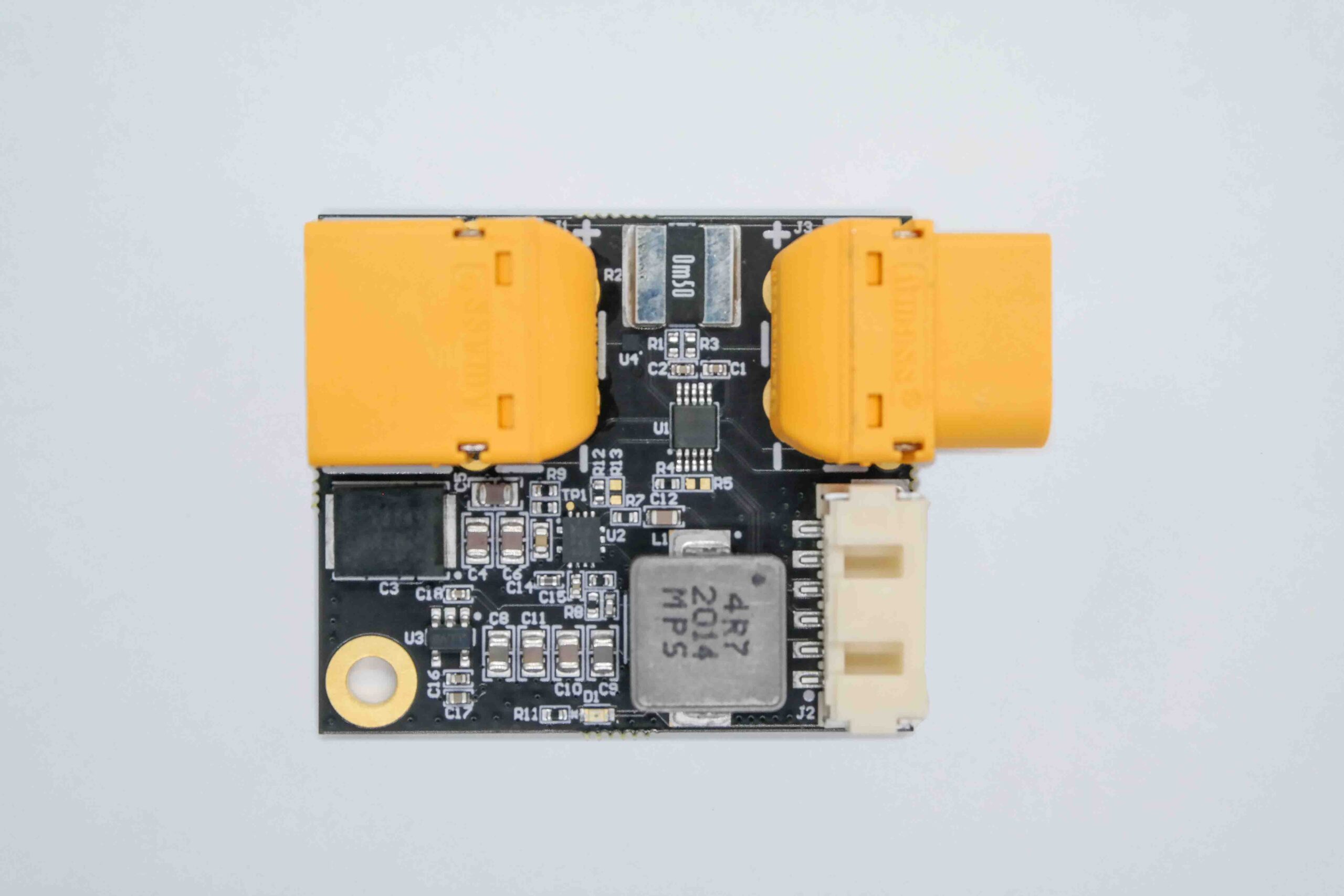

ARK PAB Power Module

Description The ARK PAB Power Module is a 5V 6A power supply and digital power monitor designed for the Pixhawk Autopilot Bus Carrier boards. TI INA226 Digital Power Monitor 0.0005 Ohm Shunt I2C Interface 5.2V 6A Step-Down Regulator 33V Maximum Input Voltage 5.8V Minimum Input Voltage at 6A Out Output Over-Voltage Protection Output Over-Current Protection XT60 Battery Input XT60 Battery Output 6 Pin Molex CLIK-Mate Output Matches ARK PAB Carrier Power Pinout Dimensions 4.75cm x 3.43cm x 1.15cm Weight 17.9g USA Built FCC Compliant Includes 6 Pin Molex CLIK-Mate Cable 3D Model Documentation
