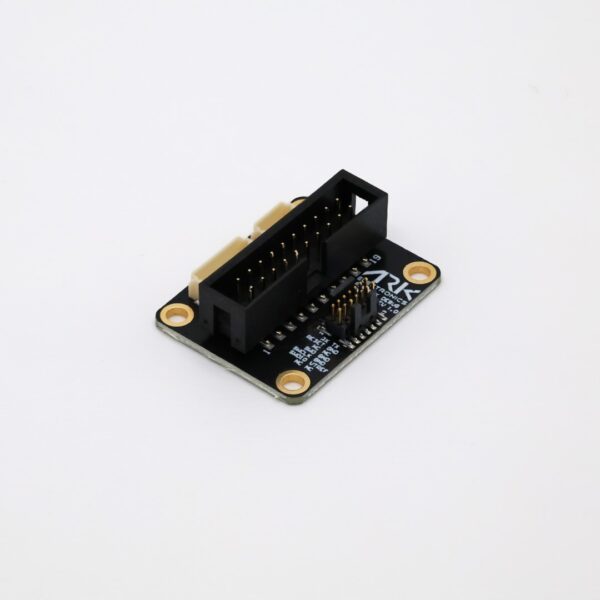

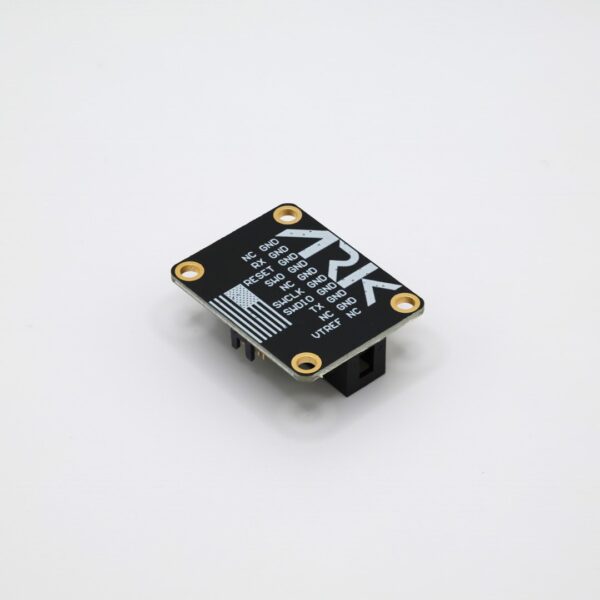

ARK Pixhawk Debug Adapter

Description The ARK Pixhawk Debug Adapter makes it simple to connect an STLink or J-Link to any board that follows the 6 or 10 pin Pixhawk Standard Debug Connector. J-Links and newer STLinks include a virtual COM port allowing for SWD and shell connections without the need for a separate USB to UART connection. J-Link SWD/VCOM 20-pin IDC keyed box header 0.1″ (2.54mm) pitch STLink STDC14 SWD/VCOM 14-pin 0.050″ (1.27mm) pitch Pixhawk Standard Debug Connectors 10 Pin JST-SH 6 Pin JST-SH Small Form Factor 3.6cm x 2.8cm x 1.1cm USA Built Includes 6 Pin and 10 Pin Pixhawk Standard Debug Cables J-Links and STLinks include the necessary cable to connect to the ARK Pixhawk Debug Adapter
