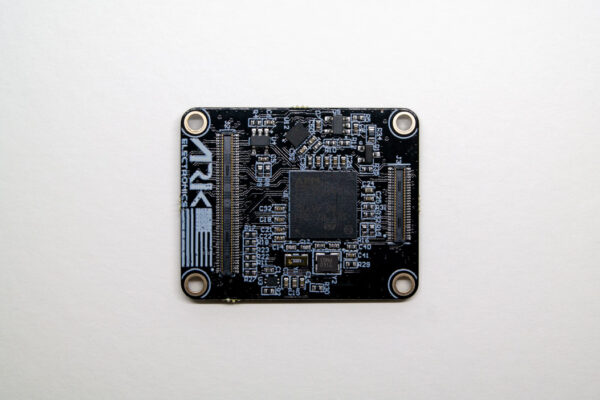

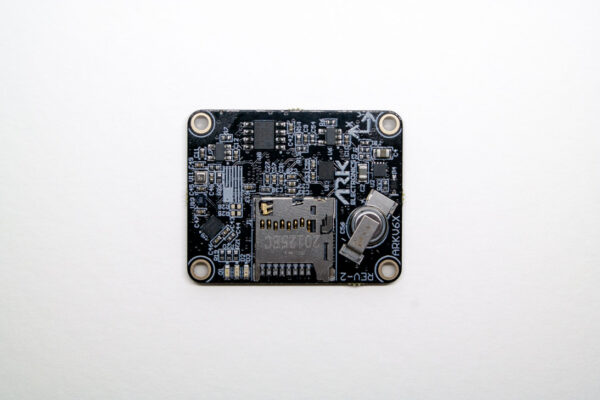

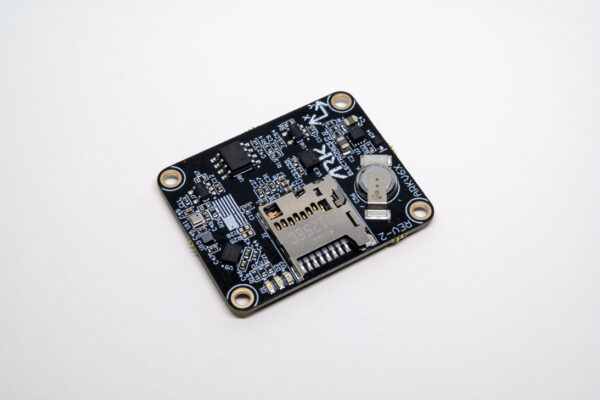

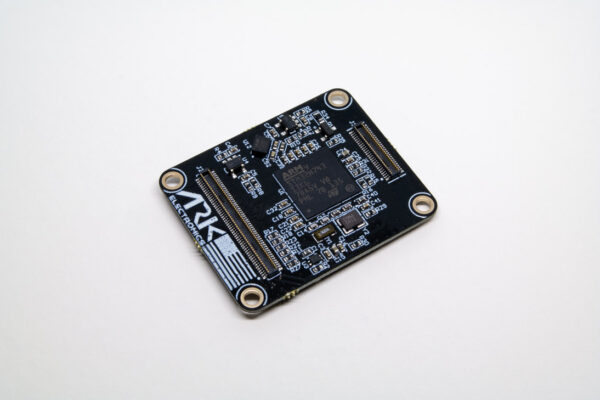

ARKV6X Flight Controller Extended Range

Description The ARKV6X NDAA compliant flight controller is based on the FMUV6X and Pixhawk Autopilot Bus open source specifications. With triple IIM-42653 extended range IMUs, it is ideal for high vibration or high-g maneuvers . The Pixhawk Autopilot Bus (PAB) form factor enables the ARKV6X to be used on any PAB carrier board. Supported Firmware PX4 Autopilot – 1.14 Ships By Default Ardupilot – 4.5 Sensors Triple Invensense IIM-42653 Industrial IMU Extended range gyroscope 4000dps vs 2000dps on the ARKV6X(IIM-42652/ICM-42688P) Extended range accelerometer 32g vs 16g on the ARKV6X(IIM-42652/ICM-42688P) Bosch BMP390 Barometer Bosch BMM150 Magnetometer STM32H743IIK6 MCU 480MHz 2MB Flash 1MB RAM FRAM Pixhawk Autopilot Bus (PAB) Form Factor Heater 1W for warming sensors in extreme cold LED Indicators MicroSD Slot USA Built Blue Framework Listed NDAA compliant FCC compliant Power Requirements 5V 500mA 300mA for main system 200mA for heater 3D Model Includes MicroSD card *Requires a Pixhawk Autopilot Bus compliant carrier such as the ARK Pixhawk Autopilot Bus Carrier Documentation
