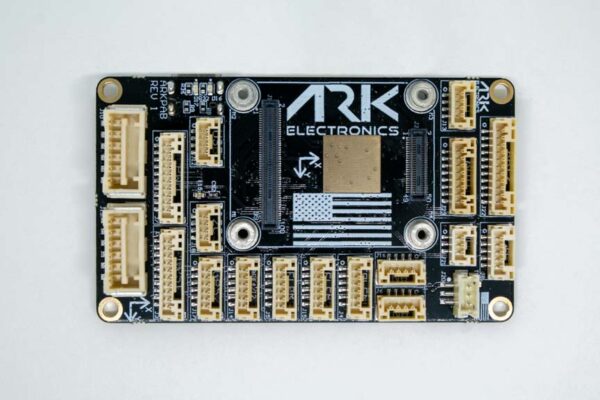

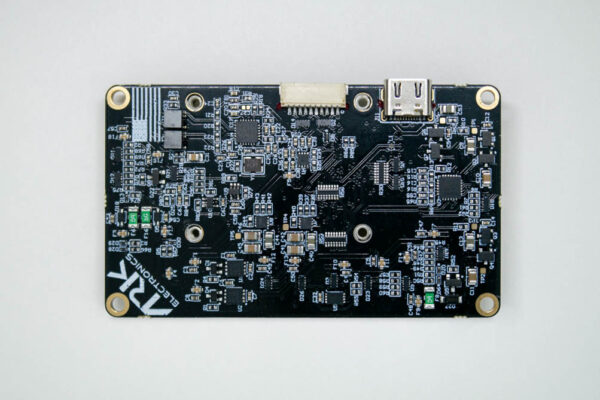

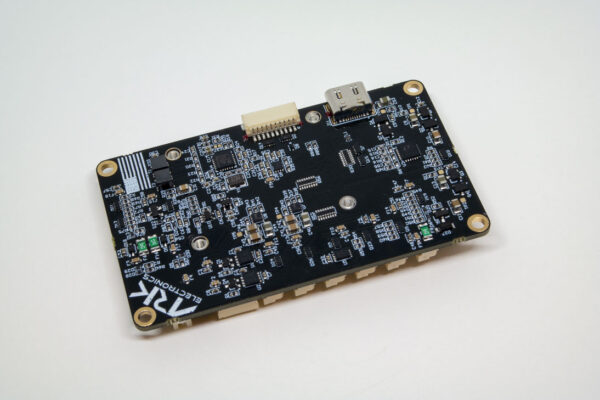

ARK Pixhawk Autopilot Bus Carrier

Description The ARK Pixhawk Autopilot Bus (PAB) Carrier is based on the Pixhawk Autopilot Bus open source specification. The Pixhawk Autopilot Bus (PAB) form factor enables the ARK PAB Carrier to be used with any PAB flight controller such as the ARKV6X. Pixhawk Autopilot Bus (PAB) Form Factor Connectors PAB Board to Board Interface 100 Pin Hirose DF40 50 Pin Hirose DF40 Dual Digital Power Module Inputs 5V Input I2C Power Monitor 6 Pin Molex CLIK-Mate Ethernet 100Mbps Built in Magnetics 4 Pin JST-GH Full GPS Plus Safety Switch Port 10 Pin JST-GH Basic GPS Port 6 Pin JST-GH Dual CAN Ports 4 Pin JST-GH Triple Telemetry Ports with Flow Control 6 Pin JST-GH Eight PWM Outputs 10 Pin JST-GH UART/I2C Port 6 Pin JST-GH I2C Port 4 Pin JST-GH PPM RC Port 3 Pin JST-GH DSM RC Port 3 Pin JST-ZH SPI Port 11 Pin JST-GH ADIO Port 8 Pin JST-GH Debug Port 10 Pin JST-SH USA Built NDAA compliant FCC compliant Power Requirements 5V Dimensions (Without Flight Controller Module) 74mm x 43.5mm x 12mm 21g 3D Models and Case Files *Requires a Pixhawk Autopilot Bus compliant flight controller such as the ARKV6X Documentation
