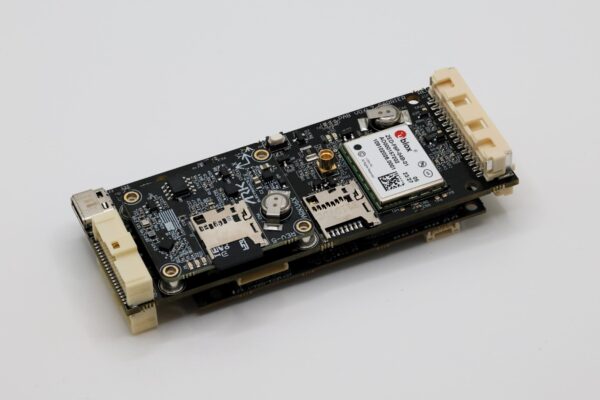

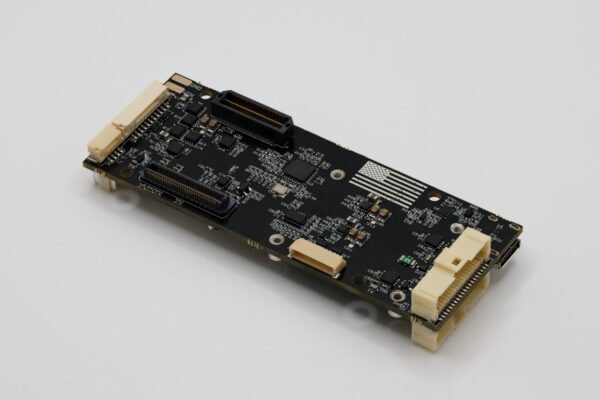

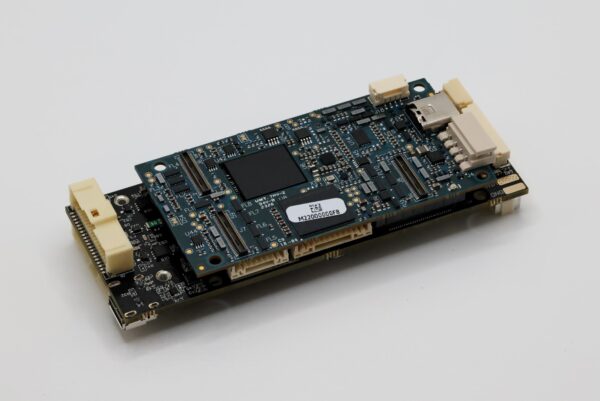

ARK VOXL2 RTK PAB Carrier

Description The VOXL2 RTK Pixhawk Autopilot Bus (PAB) Carrier is based on the Pixhawk Autopilot Bus open source specification, the ModalAI VOXL2 Carrier Board, and includes a U-blox F9P RTK GPS. The Pixhawk Autopilot Bus (PAB) form factor enables the PAB Carrier to be used with any PAB flight controller such as the ARKV6X. Pixhawk Autopilot Bus (PAB) Form Factor ModalAI VOXL2 Form Factor Ublox F9P GPS L1/L2 Multi-band GNSS receiver delivers centimeter level accuracy in seconds Concurrent reception of GPS, GLONASS, Galileo and BeiDou Multi-band RTK with fast convergence times and reliable performance High update rate for highly dynamic applications Centimeter accuracy in a small and energy efficient module Moving Base for Heading MMCX connector ModalAI VOXL2 Connectors Micro-SD USB C USB 3.0 Host 5V 1.5A USB USB 2.0 Host 4 Pin JST-GH 5V 0.75A Autopilot Connectors PAB Board to Board Interface 100 Pin Hirose DF40 50 Pin Hirose DF40 40 Pin Molex Pico-Clasp Dual 5V 1.5A (Shared with Payload Connector) 5V 0.25A Out for RC Receiver Dual CAN Dual UART TX/RX UART TX/RX RTS/CTS Dual I2C PWM x 8 SPI 11 Pin JST-GH Pixhawk Debug 10 Pin JST-SH SWD UART Payload Connector 40 Pin Molex Pico-Clasp Battery Output Dual 5V 1.5A (Shared with Autopilot Connector) Autopilot UART TX/RX RTS/CTS Autopilot UART TX/RX Dual VOXL2 UARTs TX/RX USB 2.0 Power Connector 14 Pin Molex CLIK-Mate 12S 3A Battery Input Dual 5V 6A Inputs Dual I2C Power Module Inputs USA Built NDAA compliant DIU Blue Framework Listed Weight 25 grams Dimensions (Without VOXL2 and Flight Controller Module) 94.25mm x 36.00mm x 18mm 3D Models *Requires a ModalAI VOXL2 *Requires a Pixhawk Autopilot Bus compliant flight controller such as the ARKV6X This product is not intended for military use. See U-Blox code of conduct for more information. Documentation
