ARK 12S Payload Power Module

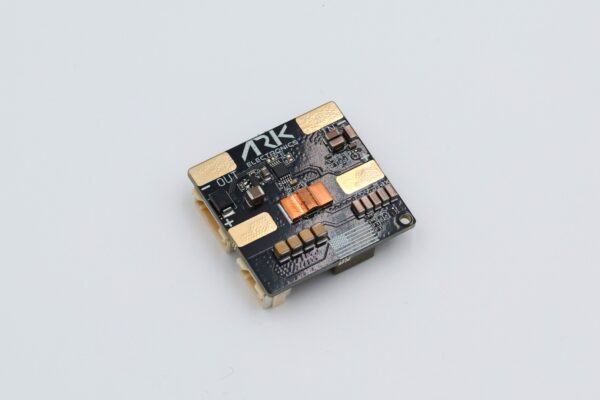

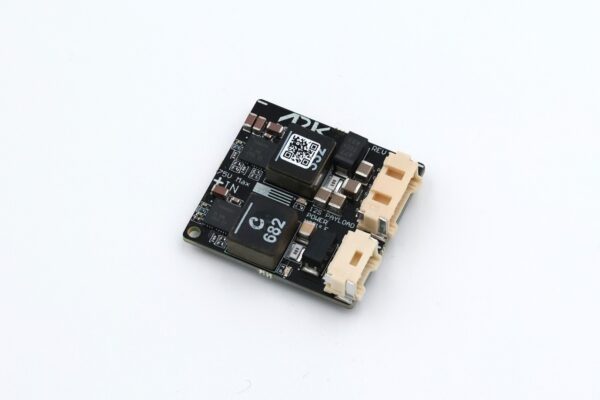

Description The ARK 12S Payload Power Module is a dual 5V 6A and 12V 6A power supply and digital power monitor designed for the Pixhawk Autopilot Bus Carrier boards. TI INA238 Digital Power Monitor 0.0001 Ohm Shunt I2C Interface 5.2V 6A Step-Down Regulator 10V Minimum Input Voltage at 6A Out Output Over-Current Protection 12.0V 6A Step-Down Regulator 15V Minimum Input Voltage at 6A Out Output Over-Current Protection 75V Maximum Input Voltage Solder Pads Battery Input Solder Pads Battery Output 6 Pin Molex CLIK-Mate 5V Output Matches ARK PAB Carrier Power Pinout 4 Pin Molex CLIK-Mate 12V Output Dimensions 3.7cm x 3.5cm x 1.3cm Weight 20.5g USA Built NDAA Compliant Includes 6 Pin and 4 Pin Molex CLIK-Mate Cables 3D Model Documentation
