ARK 4IN1 ESC CONS

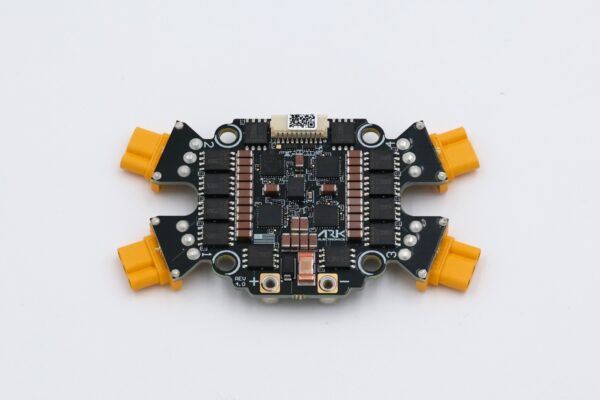

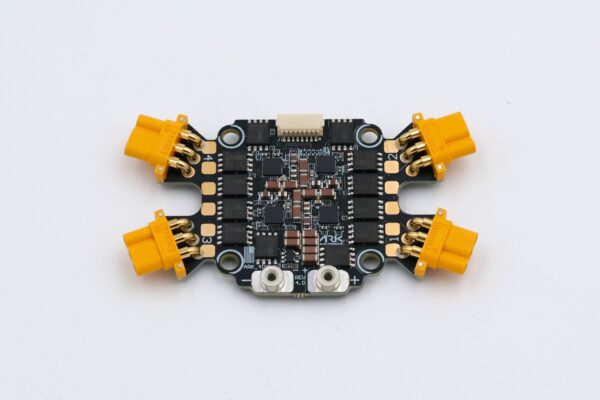

Description NDAA compliant, made in the USA, DIU Blue Framework listed, 4 in 1 electronic speed controller running open source AM32 firmware. No soldering required with built in motor and battery connectors. 3s – 8s Battery Input 6V Minimum 65V Absolute Maximum Current Limit MR30 Connector Limit Per Motor – 30A Continuous, 40A Burst Board Limit Per Motor – 50A Continuous, 75A Burst STM32F0 AM32 Firmware Onboard Current Sensor 100V/A Input Protocols Dshot (300, 600) Bi-directional Dshot KISS Serial Telemetry PWM 8 Pin JST-SH Input/Output 10 Pin JST-SH Debug M2.5 Battery Input Threaded Standoffs Two 150mm 10AWG Power Cables Terminated with M2.5 Ring Terminals Included Dimensions 77.00mm x 42.00mm x 9.43mm 30.5mm Mounting Pattern Weight 24.0g Made in the USA NDAA Compliant DIU Blue Framework Listed 3D Model Documentation
