ARK FPV Flight Controller

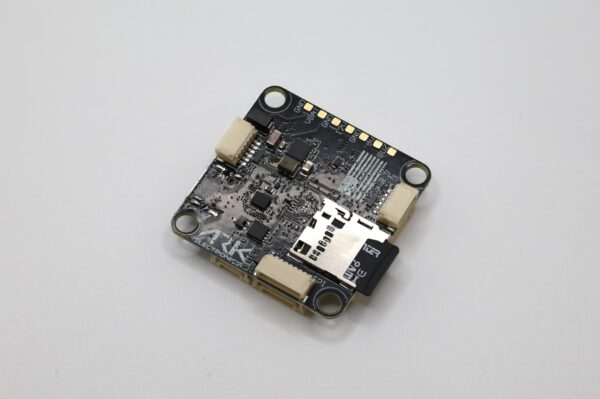

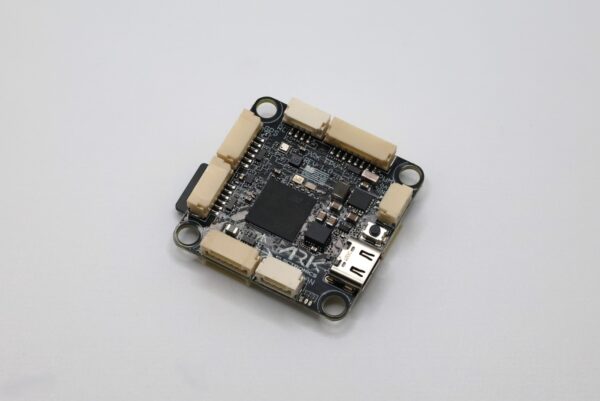

Description The ARK FPV NDAA compliant flight controller is based on the ARKV6X in a 30.5mm standard mounting pattern. Supporting 3-12s battery input with a regulated 12V 2A output for video transmitters and payloads. Supported Firmware PX4 Autopilot – Ships By Default Ardupilot Betaflight Sensors Invensense IIM-42653 Industrial IMU Bosch BMP390 Barometer ST IIS2MDC Magnetometer STM32H743IIK6 MCU 480MHz 2MB Flash 1MB RAM Connectors USB C VBUS In, USB PWM VBAT In, Analog Current Input, Telem RX, 4x PWM JST-GH 8 Pin PWM EXTRA 5x PWM JST-SH 6 Pin RC INPUT 5V Out, UART JST-GH 4 Pin POWER AUX 12V Out, VBAT In/Out JST-GH 3 Pin TELEM 5V Out, UART with flow control JST-GH 6 Pin GPS 5V Out, UART, I2C JST-GH 6 Pin CAN 5V Out, CAN JST-GH 4 Pin VTX 12V Out, UART TX/RX, UART RX JST-GH 6 Pin SPI (OSD or External IMU) 5V Out, SPI JST-SH 8 Pin DEBUG 3.3V Out, UART, SWD JST-SH 6 Pin Heater 1W for warming sensors in extreme cold LED Indicators MicroSD Slot USA Built NDAA compliant Power Battery Input 5.5V – 54V Zener Diode 54V Standoff 60V Breakdown 5V 2A Regulator 500mA 300mA for main system 200mA for heater 12V 2A Regulator For VBAT less than 12V, output will track VBAT Power control from MCU (Pit Switch) Voltage Monitoring VBAT In, 5.0V, 12.0V, 3.3V FMU, 3.3V Sensors Dimensions 3.6 × 3.6 × 0.8 cm 3D Model Weight 7.5g with MicroSD card Includes MicroSD card Documentation
