ARK Jetson PAB V3

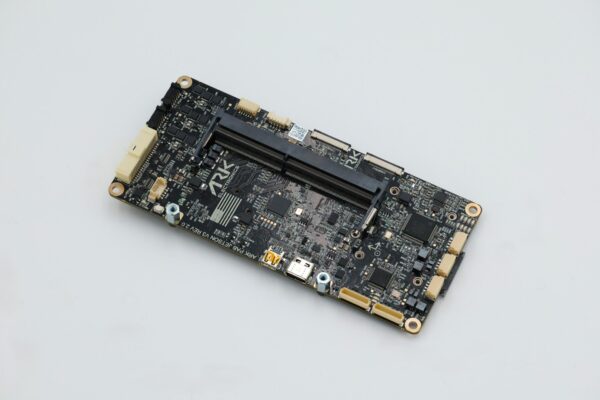

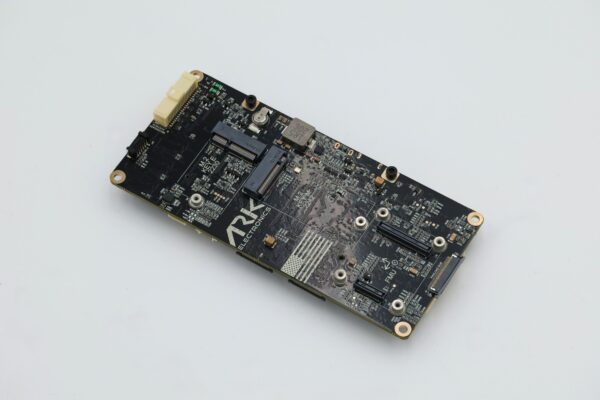

Description The ARK Jetson Pixhawk Autopilot Bus (PAB) Carrier V3 is based on the Pixhawk Autopilot Bus open source specification and the NVIDIA Jetson Orin NX/Nano Carrier Board. The Pixhawk Autopilot Bus (PAB) form factor enables the ARK PAB Carrier to be used with any PAB flight controller such as the ARKV6X. Pixhawk Autopilot Bus (PAB) Form Factor Jetson Orin NX/Nano Form Factor Supports Super Power Mode Jetson Orin NX/Nano Connectors UART2 6 Pin JST-SH Fan 4 Pin PicoBlade CSI0 22 Pin 0.5mm FFC CSI2 22 Pin 0.5mm FFC ETH 4 Pin JST-GH Micro HDMI USB C Dual Mode USB 3.2 USB 4 Pin JST-GH USB 4 Pin JST-GH M.2 Key E 2230 M.2 Key M 2242 Autopilot Connectors PAB Board to Board Interface 100 Pin Hirose DF40 50 Pin Hirose DF40 Triple Redundant Digital Power Module Inputs 5V 6A Max Per Connector I2C Power Monitor Support 3x – 6 Pin Molex Micro-Lock PLUS Primary Avionics 40 Pin Pico-Clasp Secondary Avionics 40 Pin Pico-Clasp Pixhawk Payload Bus 30 Pin 0.5mm Pitch FFC Flight Controller Debug Port 10 Pin JST-SH IO MCU Debug Port 10 Pin JST-SH Built-in Ethernet Switch 10/100 Jetson Flight Controller JST-GH Pixhawk Payload Bus USA Built NDAA compliant Power Requirements 5V 4A Minimum Depends on Usage and Peripherals Dimensions (Without Jetson and Flight Controller Module) 132mm x 61mm x 19mm Weight Without Jetson and Flight Controller Modules – 66g *Requires a NVIDIA Jetson Orin Nano or Jetson Orin NX *Will function as a Jetson Carrier without the flight controller *Requires a Pixhawk Autopilot Bus compliant flight controller such as the ARKV6X Documentation
